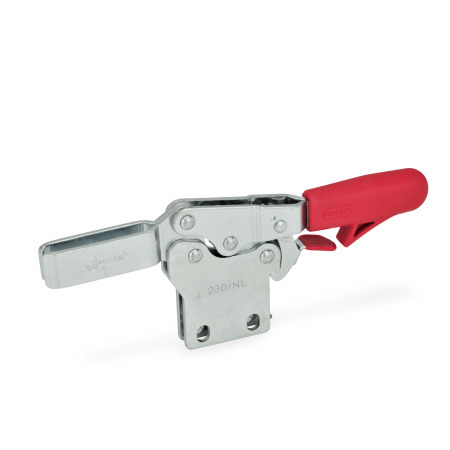

Horizontal Acting Toggle Clamps GN 820.4

Product description

Information

Horizontal acting toggle clamps GN 820.4 have a safety function whereby, during closing, a spring loaded safety hook latch ensures a secure locking connection. It prevents the inadvertent unlocking of the clamp due to vibrations or an accidental attempt of loosening / opening of the clamp. To open and release the clamp, pull up on the finger grip to disengage the safety hook latch mechanism (one hand operation).

They work according to the toggle principle: lever and clamping bar move in the opposite direction. They require less space for the clamping action.

Horizontal acting toggle clamps in the U-bar version with two flanged washers (Type NL) can accommodate an application specific spindle assembly. A spindle assembly with neoprene rubber tip is also included for Type NLC.

Type PL version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component.

Specification

Toggle clamp
Case-hardened steel C10

Zinc plated, blue passivated finish
Tempered bearing pins
Case-hardened bearing rivets (for size 355 and up)

All moving parts lubricated with special grease

Hand grip
High quality, oil resistant red plastic

Spindle assembly GN 708.1,
Type A

Steel, zinc plated, blue passivated finish
Rubber tip 85 Shore A

RoHS

Build & Price

Part Number	Size	F_H Holding capacity	a ≈	b₁	b₂	b₃	b₄	d₁	d₂	h₁ ≈	h₂	h₃

820.4-75-NL	75	202 lbf (900 N)	0.79	1.10	0.31	0.16	0.21	M 5	0.18	1.79	1.14	0.43
820.4-75-NLC	75	202 lbf (900 N)	0.79	1.10	0.31	0.16	0.21	M 5	0.18	1.79	1.14	0.43
820.4-75-PL	75	202 lbf (900 N)	-	1.10	0.31	0.16	-	M 5	0.18	1.79	1.14	0.43
820.4-130-NL	130	225 lbf (1000 N)	1.26	1.42	0.39	0.20	0.25	M 6	0.22	2.54	1.73	0.63
820.4-130-NLC	130	225 lbf (1000 N)	1.26	1.42	0.39	0.20	0.25	M 6	0.22	2.54	1.73	0.63
820.4-130-PL	130	225 lbf (1000 N)	-	1.42	0.39	0.20	-	M 6	0.22	2.54	1.73	0.63
820.4-230-NL	230	382 lbf (1700 N)	1.46	1.73	0.47	0.24	0.33	M 8	0.26	2.97	2.01	0.71
820.4-230-NLC	230	382 lbf (1700 N)	1.46	1.73	0.47	0.24	0.33	M 8	0.26	2.97	2.01	0.71
820.4-230-PL	230	382 lbf (1700 N)	-	1.73	0.47	0.24	-	M 8	0.26	2.97	2.01	0.71
820.4-355-NL	355	405 lbf (1800 N)	2.28	2.36	0.55	0.28	0.41	M 10	0.34	4.02	2.74	0.87
820.4-355-NLC	355	405 lbf (1800 N)	2.28	2.36	0.55	0.28	0.41	M 10	0.34	4.02	2.74	0.87
820.4-355-PL	355	405 lbf (1800 N)	-	2.36	0.55	0.28	-	M 10	0.34	4.02	2.74	0.87
820.4-455-NL	455	719 lbf (3200 N)	2.56	2.76	0.71	0.39	0.49	M 12	0.34	4.72	3.17	1.02
820.4-455-NLC	455	719 lbf (3200 N)	2.56	2.76	0.71	0.39	0.49	M 12	0.34	4.72	3.17	1.02
820.4-455-PL	455	719 lbf (3200 N)	-	2.76	0.71	0.39	-	M 12	0.34	4.72	3.17	1.02

Size	h₄	h₅ max.	l₁ ≈	l₂ ≈	l₃ ≈	l₄ max.	l₅	m₁	m₂	m₃	r ≈	s	w Adjustable range

75	-	-	4.65	2.64	1.57	-	-	0.53	0.14	0.20	1.67	-	-
75	0.75	0.55	4.65	2.64	1.57	1.95	-	0.53	0.14	0.20	1.67	-	0.59
75	-	-	4.65	2.64	1.57	-	1.77	0.53	0.14	0.20	1.67	0.16	-
130	-	-	6.77	3.64	2.13	-	-	1.02	0.23	0.35	2.46	-	-
130	1.00	1.08	6.77	3.64	2.13	2.52	-	1.02	0.23	0.35	2.46	-	0.69
130	-	-	6.77	3.64	2.13	-	2.17	1.02	0.23	0.35	2.46	0.20	-
230	-	-	7.72	4.29	2.54	-	-	1.02	0.26	0.35	2.81	-	-
230	1.18	1.06	7.72	4.29	2.54	3.11	-	1.02	0.26	0.35	2.81	-	0.79
230	-	-	7.72	4.29	2.54	-	2.68	1.02	0.26	0.35	2.81	0.24	-
355	-	-	10.63	6.30	3.88	-	-	1.61	0.30	0.38	4.29	-	-
355	1.46	1.61	10.63	6.30	3.88	4.57	-	1.61	0.30	0.38	4.29	-	0.75
355	-	-	10.63	6.30	3.88	-	3.03	1.61	0.30	0.38	4.29	0.28	-
455	-	-	12.01	7.24	4.55	-	-	1.63	0.43	0.49	4.96	-	-
455	1.69	1.89	12.01	7.24	4.55	5.35	-	1.63	0.43	0.49	4.96	-	1.30
455	-	-	12.01	7.24	4.55	-	3.94	1.63	0.43	0.49	4.96	0.39	-

Size	F_H Holding capacity	a ≈	b₁	b₂	b₃	b₄	d₁	d₂	h₁ ≈	h₂	h₃

75	202 lbf (900 N)	0.79	1.10	0.31	0.16	0.21	M 5	0.18	1.79	1.14	0.43
130	225 lbf (1000 N)	1.26	1.42	0.39	0.20	0.25	M 6	0.22	2.54	1.73	0.63
230	382 lbf (1700 N)	1.46	1.73	0.47	0.24	0.33	M 8	0.26	2.97	2.01	0.71
355	405 lbf (1800 N)	2.28	2.36	0.55	0.28	0.41	M 10	0.34	4.02	2.74	0.87
455	719 lbf (3200 N)	2.56	2.76	0.71	0.39	0.49	M 12	0.34	4.72	3.17	1.02

Size	h₄	h₅ max.	l₁ ≈	l₂ ≈	l₃ ≈	l₄ max.	l₅	m₁	m₂	m₃	r ≈	s	w Adjustable range

75	0.75	0.55	4.65	2.64	1.57	1.95	1.77	0.53	0.14	0.20	1.67	0.16	0.59
130	1.00	1.08	6.77	3.64	2.13	2.52	2.17	1.02	0.23	0.35	2.46	0.20	0.69
230	1.18	1.06	7.72	4.29	2.54	3.11	2.68	1.02	0.26	0.35	2.81	0.24	0.79
355	1.46	1.61	10.63	6.30	3.88	4.57	3.03	1.61	0.30	0.38	4.29	0.28	0.75
455	1.69	1.89	12.01	7.24	4.55	5.35	3.94	1.63	0.43	0.49	4.96	0.39	1.30

3D Product Configurator

Type

NL - U-bar version, with two flanged washers

NLC - U-bar version, with two flanged washers and GN 708.1 spindle assembly

PL - Solid bar version, with weldable clasp

Selected Part

Part Number

Total US Dollars (net)

$20.32

In Stock: 24

In Stock

Quantity

Please note our quantity discounts (US Dollars).

Min	Max	Price
1	49	$20.32
50	99	$18.62
100	249	$16.93
≥ 250		$15.24

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.198 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351

All Prices are in US Dollars. Taxes Not Included.
