ELESA original design code: PR-CH / LPR
Identification no.: 1 - Operation in the illustrated position top left
Product description

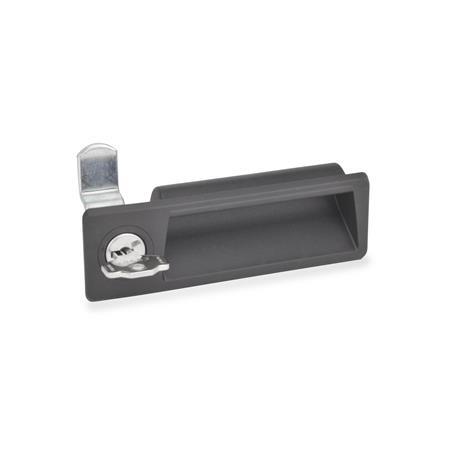

EN 731.2 cam latches / cam locks with gripping tray are used in applications that require a molded recess in addition to the latching mechanism, e.g. if operating elements are not allowed to protrude for reasons of space. They lock by a turning operation limited to 90°, which moves the latch arm in the locked position behind the door frame.
Latch arms with different bend angles cover a latch arm distance A1 or A2 from 11 to 35 mm. The latch arm length can also be selected.
Depending on the type, the latches are supplied with 2 plastic socket keys or 2 brass keys. The key may be pulled off in both end positions.
For types with the same lock every lock can be opened with the same key. For types with different locks, there are over 400 (type SU) or 160 (type SM) different lock variants with correspondingly numbered keys.
The details on load bearing capacity F1 and F2 were determined with a wall thickness s = 1.5 mm.
Product comes supplied with a loosely enclosed latch arm.
Specification
Housing / operation bolt
Plastic
Technopolymer (Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 176 °F (80 °C)
- Black-gray, RAL 7021, matte finishSG
Latch arm
Steel, zinc plated
Lock cylinder
Zinc die-cast
Key
Brass, nickel plated
Washer / screw
- Steel, zinc plated
(Type SC, SU, SM) - Stainless steel AISI 304
(Type DK, VK, VDE)
RoHS
