Ball Plungers GN 815.1


Type: NI - Stainless steel, standard spring load

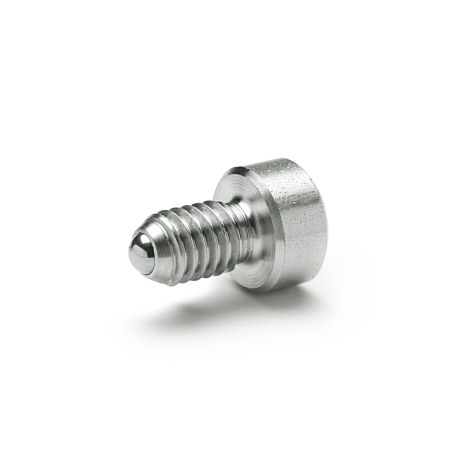

GN 815.1 Stainless Steel Ball Plungers, with Internal Hexagon Head Type: NIS - Stainless steel, high spring load

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Product description

Information

Ball plungers GN 815.1 are used as stops as well as thrust elements or ejectors.

The head gives a defined and fixed installation position.

Specification

Type NI / NIS

Housing
Stainless steel AISI 303
Ball
Stainless steel AISI 420C
Hardened
Spring
Stainless steel

Identification of type NIS:
Housing with 2 longitudinal markings

RoHS

Build & Price

Part Number	d₁	d₂	d₃	l₁	l₂	l₃	w Compression	A/F in mm	Spring load ≈ Standard_(Type_NI) Initial	End	Spring load ≈ High_(Type_NIS) Initial	End

815.1-M4-NI	M 4	0.10	0.24	0.35	0.12	0.30	0.03	2	1.80 lbf (8 N)	3.15 lbf (14 N)	2.70 lbf (12 N)	4.05 lbf (18 N)
815.1-M5-NI	M 5	0.12	0.31	0.39	0.16	0.32	0.04	2.5	1.80 lbf (8 N)	3.15 lbf (14 N)	3.37 lbf (15 N)	4.95 lbf (22 N)
815.1-M6-NI	M 6	0.14	0.39	0.39	0.20	-	0.04	3	2.47 lbf (11 N)	4.05 lbf (18 N)	4.34 lbf (19.3 N)	5.98 lbf (26.6 N)
815.1-M8-NI	M 8	0.18	0.51	0.49	0.22	-	0.06	4	4.05 lbf (18 N)	6.97 lbf (31 N)	8.09 lbf (36 N)	13.60 lbf (60.5 N)
815.1-M10-NI	M 10	0.24	0.63	0.67	0.24	-	0.08	5	5.40 lbf (24 N)	10.12 lbf (45 N)	12.81 lbf (57 N)	23.27 lbf (103.5 N)
815.1-M12-NI	M 12	0.31	0.71	0.75	0.28	-	0.10	6	5.85 lbf (26 N)	11.02 lbf (49 N)	13.71 lbf (61 N)	24.73 lbf (110 N)

Part Number	d₁	d₂	d₃	l₁	l₂	l₃	w Compression	A/F in mm	Spring load ≈ Standard_(Type_NI) Initial	End	Spring load ≈ High_(Type_NIS) Initial	End

815.1-M4-NIS	M 4	0.10	0.24	0.35	0.12	0.30	0.03	2	1.80 lbf (8 N)	3.15 lbf (14 N)	2.70 lbf (12 N)	4.05 lbf (18 N)
815.1-M5-NIS	M 5	0.12	0.31	0.39	0.16	0.32	0.04	2.5	1.80 lbf (8 N)	3.15 lbf (14 N)	3.37 lbf (15 N)	4.95 lbf (22 N)
815.1-M6-NIS	M 6	0.14	0.39	0.39	0.20	-	0.04	3	2.47 lbf (11 N)	4.05 lbf (18 N)	4.34 lbf (19.3 N)	5.98 lbf (26.6 N)
815.1-M8-NIS	M 8	0.18	0.51	0.49	0.22	-	0.06	4	4.05 lbf (18 N)	6.97 lbf (31 N)	8.09 lbf (36 N)	13.60 lbf (60.5 N)
815.1-M10-NIS	M 10	0.24	0.63	0.67	0.24	-	0.08	5	5.40 lbf (24 N)	10.12 lbf (45 N)	12.81 lbf (57 N)	23.27 lbf (103.5 N)
815.1-M12-NIS	M 12	0.31	0.71	0.75	0.28	-	0.10	6	5.85 lbf (26 N)	11.02 lbf (49 N)	13.71 lbf (61 N)	24.73 lbf (110 N)

d₁	d₂	d₃	l₁	l₂	l₃	w Compression	A/F in mm	Spring load ≈ Standard_(Type_NI) Initial	End	Spring load ≈ High_(Type_NIS) Initial	End

M 4	0.10	0.24	0.35	0.12	0.30	0.03	2	1.80 lbf (8 N)	3.15 lbf (14 N)	2.70 lbf (12 N)	4.05 lbf (18 N)
M 5	0.12	0.31	0.39	0.16	0.32	0.04	2.5	1.80 lbf (8 N)	3.15 lbf (14 N)	3.37 lbf (15 N)	4.95 lbf (22 N)
M 6	0.14	0.39	0.39	0.20	-	0.04	3	2.47 lbf (11 N)	4.05 lbf (18 N)	4.34 lbf (19.3 N)	5.98 lbf (26.6 N)
M 8	0.18	0.51	0.49	0.22	-	0.06	4	4.05 lbf (18 N)	6.97 lbf (31 N)	8.09 lbf (36 N)	13.60 lbf (60.5 N)
M 10	0.24	0.63	0.67	0.24	-	0.08	5	5.40 lbf (24 N)	10.12 lbf (45 N)	12.81 lbf (57 N)	23.27 lbf (103.5 N)
M 12	0.31	0.71	0.75	0.28	-	0.10	6	5.85 lbf (26 N)	11.02 lbf (49 N)	13.71 lbf (61 N)	24.73 lbf (110 N)
