Medium Duty Casters EN 22873

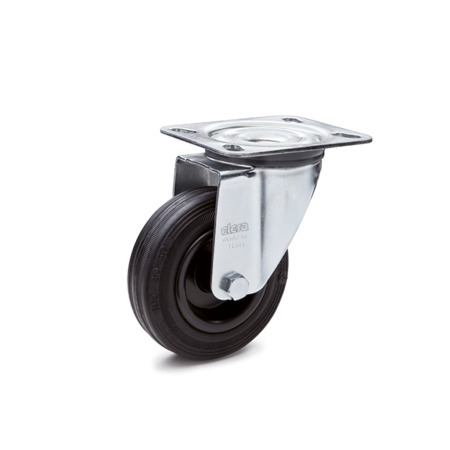

EN 22873 Steel Medium Duty Casters, Rubber Wheel Tread, Polypropylene Wheel Core, Light Version Bearing type: G - Friction bearing
Bracket type: L - Swivel bracket with mounting plate
Coding: L - Light version
Bracket material: ST - Steel sheet metal, zinc plated

Original design RE.E2-N.

Bearing type: G - Friction bearing
Bracket type: L - Swivel bracket with mounting plate
Coding: L - Light version
Bracket material: ST - Steel sheet metal, zinc plated

Standard Sheet EN 22873 Print This Page General Notes and Overview of Types Operating Conditions and Technical Information Plastic Characteristics

Product description

Medium duty casters EN 22873 are used in industrial and public indoor and outdoor areas for moving lightweight carts, for example.

The wheel tread is suitable for all floor types. It is gentle on floors and good at overcomingobstacles. Tread wear may occur on rough floors.

Specification

Wheel tread
Rubber

Vulcanized, black
Hardness 80 Shore A

Wheel core
Plastic, polypropylene (PP)

Bracket
Steel sheet metal, zinc platedST

Swivel head bracket

Dual grease-lubricated ball bearing
Dust protection ring on type L / LF
Plastic, polyethylene (PE)

Operating temperature
-4 °F to +140 °F (-20 °C to +60 °C)

RoHS

Hide technical drawing

EN 22873 Steel Medium Duty Casters, Rubber Wheel Tread, Polypropylene Wheel Core, Light Version sketch

Part Options / Table

Bearing type

G	Friction bearing

Bracket type

B	Rigid bracket
L	Swivel bracket with mounting plate
LF	Swivel bracket with mounting plate, with total lock brake
R	Swivel bracket with center hole
RF	Swivel bracket with center hole, with total lock brake

Coding

L	Light version

Part Number	d₁ Wheel Ø	b	d₂	d₃	d₄	hType B / L / LF	Type R / RF	l₁	l₂ Type B	Type L / LF	l₃	m₁	m₂ Type B	Type L / LF	m₃	m₄	r	Max. dynamic load capacity

22873-80-G-B-L-ST	3.15	0.98	0.35	0.47	2.87	4.21	-	3.94	3.35	-	1.57	1.77	2.36	-	2.95	3.15	4.72	146 lbf (650 N)
22873-100-G-B-L-ST	3.94	1.18	0.35	0.47	2.87	5.04	-	3.94	3.35	-	1.38	1.77	2.36	-	2.95	3.15	4.72	180 lbf (800 N)
22873-125-G-B-L-ST	4.92	1.48	0.35	0.47	2.87	6.14	-	3.94	3.35	-	1.46	1.77	2.36	-	2.95	3.15	4.72	247 lbf (1100 N)
22873-150-G-B-L-ST	5.91	1.57	0.35	0.47	2.87	7.17	-	3.94	3.35	-	1.34	1.77	2.36	-	2.95	3.15	4.72	292 lbf (1300 N)
22873-180-G-B-L-ST	7.09	1.77	0.43	0.79	4.02	8.62	-	5.51	4.49	-	2.20	2.87	3.35	-	4.13	4.13	6.14	405 lbf (1800 N)
22873-200-G-B-L-ST	7.87	1.97	0.43	0.79	4.02	9.45	-	5.51	4.49	-	2.20	2.87	3.35	-	4.13	4.13	6.14	506 lbf (2250 N)

Part Number	d₁ Wheel Ø	b	d₂	d₃	d₄	hType B / L / LF	Type R / RF	l₁	l₂ Type B	Type L / LF	l₃	m₁	m₂ Type B	Type L / LF	m₃	m₄	r	Max. dynamic load capacity

22873-80-G-L-L-ST	3.15	0.98	0.35	0.47	2.87	4.21	-	3.94	-	3.35	1.57	1.77	-	2.36	2.95	3.15	4.72	146 lbf (650 N)
22873-100-G-L-L-ST	3.94	1.18	0.35	0.47	2.87	5.04	-	3.94	-	3.35	1.38	1.77	-	2.36	2.95	3.15	4.72	180 lbf (800 N)
22873-125-G-L-L-ST	4.92	1.48	0.35	0.47	2.87	6.14	-	3.94	-	3.35	1.46	1.77	-	2.36	2.95	3.15	4.72	247 lbf (1100 N)
22873-150-G-L-L-ST	5.91	1.57	0.35	0.47	2.87	7.17	-	3.94	-	3.35	1.34	1.77	-	2.36	2.95	3.15	4.72	292 lbf (1300 N)
22873-180-G-L-L-ST	7.09	1.77	0.43	0.79	4.02	8.62	-	5.51	-	4.33	2.20	2.87	-	3.43	4.13	4.13	6.14	405 lbf (1800 N)
22873-200-G-L-L-ST	7.87	1.97	0.43	0.79	4.02	9.45	-	5.51	-	4.33	2.20	2.87	-	3.43	4.13	4.13	6.14	506 lbf (2250 N)

Part Number	d₁ Wheel Ø	b	d₂	d₃	d₄	hType B / L / LF	Type R / RF	l₁	l₂ Type B	Type L / LF	l₃	m₁	m₂ Type B	Type L / LF	m₃	m₄	r	Max. dynamic load capacity

22873-80-G-LF-L-ST	3.15	0.98	0.35	0.47	2.87	4.21	-	3.94	-	3.35	1.57	1.77	-	2.36	2.95	3.15	4.72	146 lbf (650 N)
22873-100-G-LF-L-ST	3.94	1.18	0.35	0.47	2.87	5.04	-	3.94	-	3.35	1.38	1.77	-	2.36	2.95	3.15	4.72	180 lbf (800 N)
22873-125-G-LF-L-ST	4.92	1.48	0.35	0.47	2.87	6.14	-	3.94	-	3.35	1.46	1.77	-	2.36	2.95	3.15	4.72	247 lbf (1100 N)
22873-150-G-LF-L-ST	5.91	1.57	0.35	0.47	2.87	7.17	-	3.94	-	3.35	1.34	1.77	-	2.36	2.95	3.15	4.72	292 lbf (1300 N)
22873-180-G-LF-L-ST	7.09	1.77	0.43	0.79	4.02	8.62	-	5.51	-	4.33	2.20	2.87	-	3.43	4.13	4.13	6.14	405 lbf (1800 N)
22873-200-G-LF-L-ST	7.87	1.97	0.43	0.79	4.02	9.45	-	5.51	-	4.33	2.20	2.87	-	3.43	4.13	4.13	6.14	506 lbf (2250 N)

Part Number	d₁ Wheel Ø	b	d₂	d₃	d₄	hType B / L / LF	Type R / RF	l₁	l₂ Type B	Type L / LF	l₃	m₁	m₂ Type B	Type L / LF	m₃	m₄	r	Max. dynamic load capacity

22873-80-G-R-L-ST	3.15	0.98	0.35	0.47	2.87	-	4.21	3.94	-	-	1.57	1.77	-	-	2.95	3.15	4.72	146 lbf (650 N)
22873-100-G-R-L-ST	3.94	1.18	0.35	0.47	2.87	-	5.04	3.94	-	-	1.38	1.77	-	-	2.95	3.15	4.72	180 lbf (800 N)
22873-125-G-R-L-ST	4.92	1.48	0.35	0.47	2.87	-	6.14	3.94	-	-	1.46	1.77	-	-	2.95	3.15	4.72	247 lbf (1100 N)
22873-150-G-R-L-ST	5.91	1.57	0.35	0.47	2.87	-	7.17	3.94	-	-	1.34	1.77	-	-	2.95	3.15	4.72	292 lbf (1300 N)
22873-180-G-R-L-ST	7.09	1.77	0.43	0.79	4.02	-	8.43	5.51	-	-	2.20	2.87	-	-	4.13	4.13	6.14	405 lbf (1800 N)
22873-200-G-R-L-ST	7.87	1.97	0.43	0.79	4.02	-	9.29	5.51	-	-	2.20	2.87	-	-	4.13	4.13	6.14	506 lbf (2250 N)

Part Number	d₁ Wheel Ø	b	d₂	d₃	d₄	hType B / L / LF	Type R / RF	l₁	l₂ Type B	Type L / LF	l₃	m₁	m₂ Type B	Type L / LF	m₃	m₄	r	Max. dynamic load capacity

22873-80-G-RF-L-ST	3.15	0.98	0.35	0.47	2.87	-	4.21	3.94	-	-	1.57	1.77	-	-	2.95	3.15	4.72	146 lbf (650 N)
22873-100-G-RF-L-ST	3.94	1.18	0.35	0.47	2.87	-	5.04	3.94	-	-	1.38	1.77	-	-	2.95	3.15	4.72	180 lbf (800 N)
22873-125-G-RF-L-ST	4.92	1.48	0.35	0.47	2.87	-	6.14	3.94	-	-	1.46	1.77	-	-	2.95	3.15	4.72	247 lbf (1100 N)
22873-150-G-RF-L-ST	5.91	1.57	0.35	0.47	2.87	-	7.17	3.94	-	-	1.34	1.77	-	-	2.95	3.15	4.72	292 lbf (1300 N)
22873-180-G-RF-L-ST	7.09	1.77	0.43	0.79	4.02	-	8.43	5.51	-	-	2.20	2.87	-	-	4.13	4.13	6.14	405 lbf (1800 N)
22873-200-G-RF-L-ST	7.87	1.97	0.43	0.79	4.02	-	9.29	5.51	-	-	2.20	2.87	-	-	4.13	4.13	6.14	506 lbf (2250 N)

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁ Wheel Ø	b	d₂	d₃	d₄	hType B / L / LF	Type R / RF	l₁	l₂ Type B	Type L / LF	l₃	m₁	m₂ Type B	Type L / LF	m₃	m₄	r	Max. dynamic load capacity

3.15	0.98	0.35	0.47	2.87	4.21	4.21	3.94	3.35	3.35	1.57	1.77	2.36	2.36	2.95	3.15	4.72	146 lbf (650 N)
3.94	1.18	0.35	0.47	2.87	5.04	5.04	3.94	3.35	3.35	1.38	1.77	2.36	2.36	2.95	3.15	4.72	180 lbf (800 N)
4.92	1.48	0.35	0.47	2.87	6.14	6.14	3.94	3.35	3.35	1.46	1.77	2.36	2.36	2.95	3.15	4.72	247 lbf (1100 N)
5.91	1.57	0.35	0.47	2.87	7.17	7.17	3.94	3.35	3.35	1.34	1.77	2.36	2.36	2.95	3.15	4.72	292 lbf (1300 N)
7.09	1.77	0.43	0.79	4.02	8.62	8.43	5.51	4.49	4.33	2.20	2.87	3.35	3.43	4.13	4.13	6.14	405 lbf (1800 N)
7.87	1.97	0.43	0.79	4.02	9.45	9.29	5.51	4.49	4.33	2.20	2.87	3.35	3.43	4.13	4.13	6.14	506 lbf (2250 N)

Build & Price

Suitable for Floor Type

The type of the floor and the possible obstacles are factors that influence the amount of force required to move the cart as well as the transmission of vibrations and the wear on the wheel.
Based on the characteristics of the floor, the guidelines apply to selecting the right wheel:

For irregular floors and in the case of obstacles, the wheels should have soft and thick tread and large diameter.
For smooth floors and heavy loads, the wheels should have hard tread.

The following table shows the suitable floor type for each wheel in simplified form.

Show / Hide columns

Standard	Tiles	Asphalt	Cement-resin, concrete	Unpaved floor	Grate floor	Floor with chips	Floor with obstacles

EN 22870	x	-	-	-	-	-	x
EN 22872	x	-	x	-	-	-	-
EN 22873	x	x	x	x	x	x	x
EN 22874	x	x	x	x	x	x	x
EN 22875	x	x	x	x	x	x	x
EN 22880	x	-	x	-	-	-	x
EN 22882	x	-	x	-	-	-	-
EN 22884	x	-	x	-	-	-	x
EN 22885	x	-	x	-	-	-	-
EN 22886	x	x	x	x	x	x	x
EN 22887	x	-	x	-	-	-	-
EN 22892	x	-	x	-	-	-	-
EN 22894	x	-	x	-	-	-	-
EN 22868	x	-	x	-	-	-	-

Selected Part

Part Number

Total (net)

US$7.72

Call / Email for Delivery Time

Quantity

Please note our quantity discounts (US Dollars).

Min	Max	Price
1	49	US$7.72
50	99	US$7.08
100	249	US$6.44
≥ 250		US$5.79

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.793 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
